Sanitary Multi-Cartridges Filter Housing
RL
Sanitary Multi-Cartridges Filter Housing

Design P. 10kg/cm²     Operating P. 7kg/cm²
Design T. 100˚C      Operating T. 75˚C

Material：SUS304 SUS316 SUS316L
O-ring   ：EPDM/VITON/NBR/SILICONE
Surface finished：Polishing,Electrolyze & Polishing(EP)

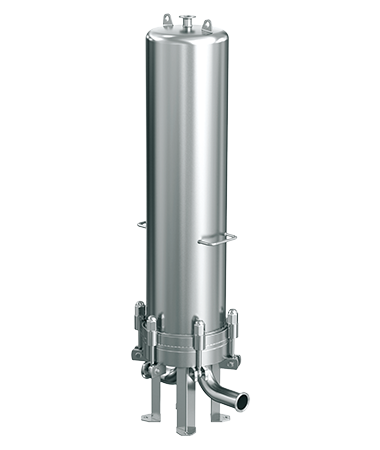

Sanitary Multi-Cartridges Filter Housing
Features
●100% sanitary grade filter housing, cartridge support plate is detachable, easy to clean and without dirt remain.
●Sanitary multi-cartridges filter housing using inside and outside polished #400 process, the surface is bright as mirror.
●The base is casted products; anti-stress won’t easy to cause deformation.
●Parallel inlet and outlet design, easier for customer to make piping placement.
●Patented eye bolt socket design makes easily to replace the cartridges without any tool.
●Flat pressure plate which can increase the pressure on the cartridges and the tightness.

Applications

●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment

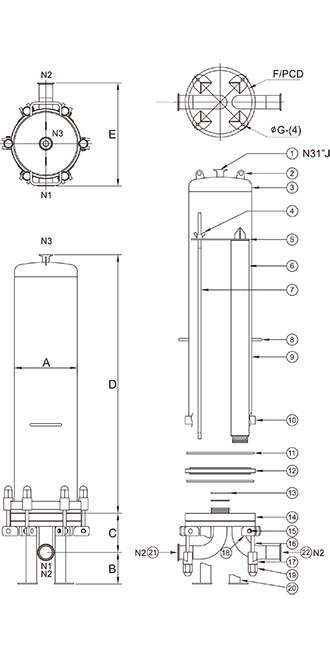

Specifications
Model
Length of Cartridge
A m/m
B m/m
C m/m
D m/m
E m/m
F m/m
N1/N2
G m/m
3~6RL
30"
Ø238
120
148
978
400
Ø240
2"
12
7~8RL
30"
Ø306
120
148
1005
420
Ø340
2"
14
9~12RL
30"
Ø350
120
148
1012
500
Ø420
2"
14
13~18RL
30"
Ø406
120
148
1024
520
Ø480
2"
14
19~30RL
30"
Ø486
120
148
1040
600
Ø540
2"
14
31~36RL
30"
Ø560
120
148
1054
640
Ø580
2"
18



Purchase Code
8
RL
3
C5
4
50
J
E
3
3
QTY of Cartridge Product code Length of Cartridge Cartridge Material In&Outlet size In&Outlet type O-ring Material Interior surface finished Exterior surface finished
3~36 3-30"
4-40" 		CF-DOE
C5-222+Fin
C7-226 		4-304
6-316
6L-316L 		15-1/2"
20-3/4"
25-1"
40-1-1/2"
50-2"
65-2-1/2"
80-3"
90-3-1/2"
100-4" 		10K-JIS
150P-ANSI
PN10-DIN
J-Clamp
PF-BSPT-F
BF-BSPF-F
NF-NPT-F 		E-EPDM
V-Viton
N-NBR
S-Silicone 		3-Polishing
4-Electrolyze&
Polishing(EP) 		3-Polishing
4-Electrolyze&
Polishing(EP)

Packing Detail
Detail
Carton
3~36RL
N/A
