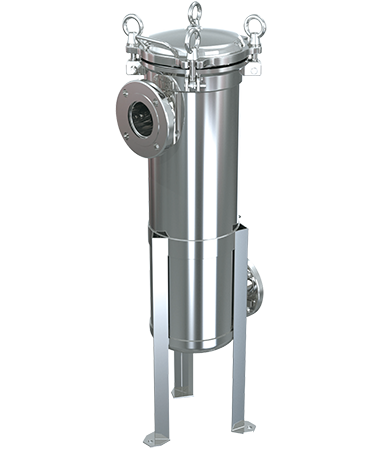

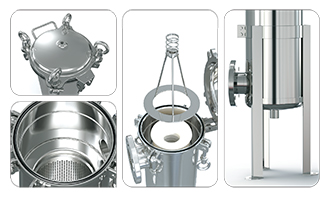

High Flow Rate Single Cartridges Filter Housing(High Pressure/Vertical)
HSV
High Flow Rate Single Cartridges Filter Housing(High Pressure/Vertical)

Design P. 15kg/cm²     Operating P. 10kg/cm²
Design T. 100˚C           Operating T. 75˚C

Material：SUS304 SUS316
O-ring   ：EPDM/VITON/NBR/SILICONE/TEFLON+VITON
Surface finished：Acid-Washing,Electrolyze and Other unique surface finished.

High Flow Rate Single Cartridges Filter Housing(High Pressure/Vertical)
Features
●The high flow filter housing can be customized to meet customer’s requirement.
●The high flow filter housing has smaller dimension to reduce the cost, also save some plant space and meet customer needs.
●The high flow filter housing has vertical design to conforms the traditional piping work.


Applications

●Water
●Groundwater
●Food Industry
●Beverage Industry
●Environmental Industries
●Electronic Industry
●Machinery oil
●Electroplating Industry
●Petrochemical Industry
●Pool
●Unique liquid filtration
●Industrial wastewater treatment

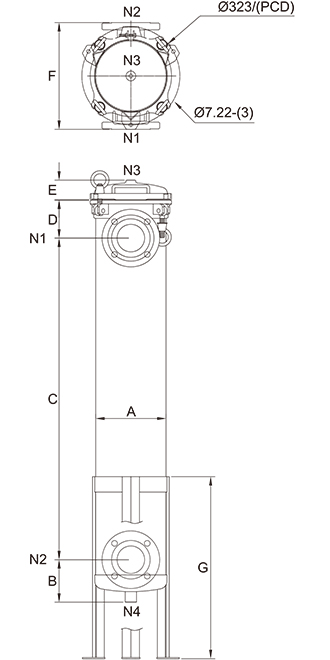

Specifications
Model
Length of Cartridge
A m/m
B m/m
C m/m
D m/m
E m/m
F m/m
G m/m
HSV
20"
Ø232
140
550
125
65
358
600
HSV
40”
Ø232
140
1060
125
65
358
600



Purchase Code
HSV
4
4
50
10K
E
1
2
Product code Length of Cartridge Material In&Outlet size In&Outlet type O-ring Material Interior surface finished Exterior surface finished
2-20"
4-40" 		4-304
6-316 		15-1/2"
20-3/4"
25-1"
40-1-1/2"
50-2"
65-2-1/2"
80-3" 		10K-JIS
150P-ANSI
PN10-DIN
J-Clamp
PF-BSPT-F
BF-BSPF-F
N-NPT-F 		E-EPDM
V-Viton
N-NBR
S-Silicone
TV-Teflon+Viton 		1-Acid-Washing
 1-Acid-Washing
2-Electrolyze
3-Polishing

Packing Detail
Detail
Carton
HSV-20"/40"
N/A
